Intelligent Automatic Lamination Machine Automatic Flute Laminator For Furniture And Flooring Industries

Name: Intelligent Automatic Lamination Machine Automatic Flute Laminator For Furniture And Flooring Industries
Brand: FINTEECH
Price: 1 USD

Brand Name : FINTEECH

Model Number : GS-110

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Lower Noise : Yes

Application : Panel Honeycomb board Laminating

Other Names : Hot Melt Adhesive Sticking Machine

Keywords : Hot Melt Glue

Two Faces : YES

Perforating Knife : Automatic

Map Lamination : Application

Contact Now

Instruction machine:

This machine is professional film lamination machine with intelligent function, it is high speed, high quality, high stability. Which can used for different printed paper material with high quality surface after printing processing, it can choose with according to the user's requirement with different configuration. Round knife slitting with standard, Hot knife slitting for optional, chain knife slitting for optional , it can slit different material, such as OPP,PET,PVC.

Technical Parameters:

Model	GS-110 series High Speed Intelligent Film Lamination Machine
Size	GS-110-S \| GS-110-M \| GS-110-L
Max sheet size	10801000mm \| 10801200mm \| 1080*1450mm
Min sheet size	300350mm \| 300350mm \| 300*350mm
Paper thickness	80-500 g/㎡ \| 80-500 g/㎡ \| 80-500 g/㎡
Speed	20-120m/min \| 20-120m/min \| 20-120m/min
Machine total Power	60 KW \| 60 KW \| 60 KW
Machine size	1175026003000mm \| 1175026003000mm \| 1200026003000mm
Weight	11000 KGS \| 11000 KGS \| 11000 KGS
Standard configuration main function	Round Knife cutter Hole drilling by sandpaper Single power Removing roller Automatic paper correction Non-stop feeding system Automatic collecting final product Feeding with stacking automatically
Optional	Chain knife cutting \| Chain knife cutting \| Chain knife cutting
Optional	Hot knife cutting \| Hot knife cutting \| Hot knife cutting
Optional	Double power removing roller \| Double power removing roller \| Double power removing roller
Optional	Brush power removing \| Brush power removing \| Bush power removing

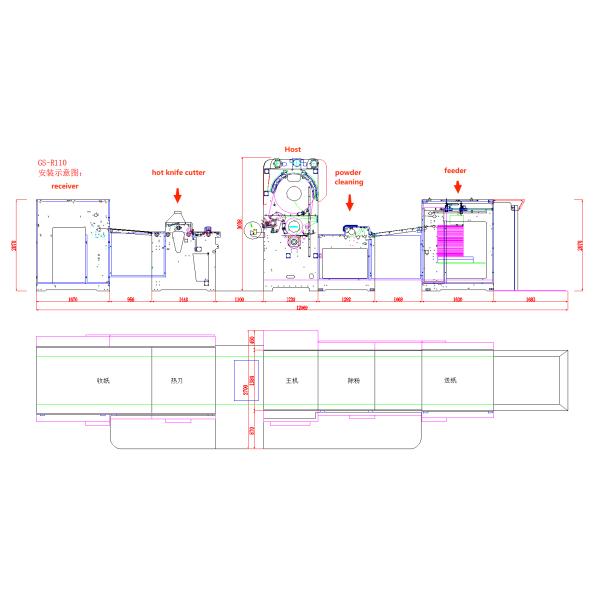

Machine More details:
